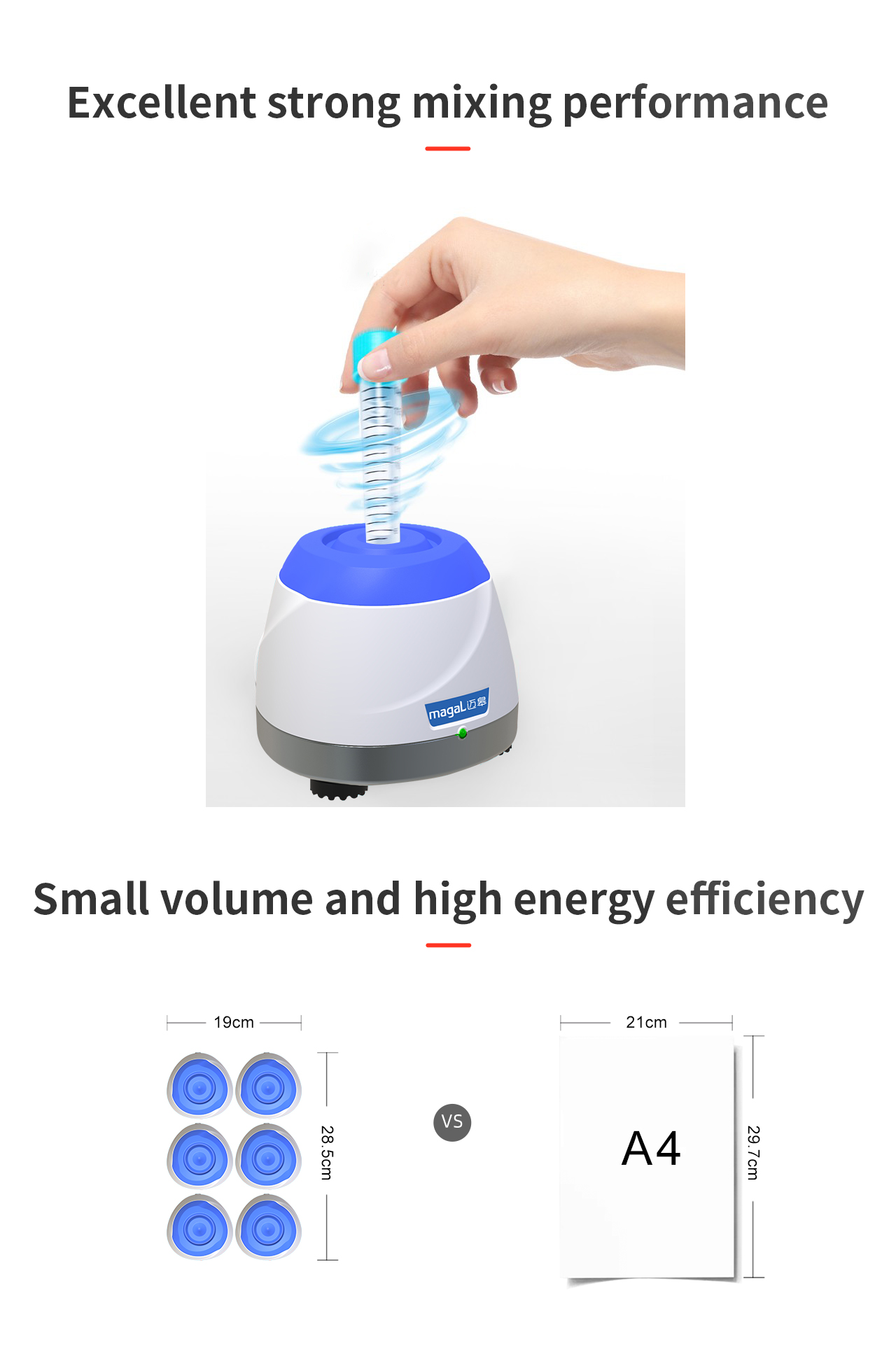

Mini Vortex MixerM3
Product Introduction
Mini Vortex mixer is manufactured at the design concept of circular eccentric bearing rotation oscillation while pressing. Low center of gravity and compact structure, aesthetic appearance. The constant rotation speed ensure the quickly process sample mixing.
Advantage
1.Equipped with a power indicator to know status of the instrument anytime.
2.The abrasion proof silicone oscillating gasket to sure the longer service life.
3.Zinc alloy one-piece molding base, low center of gravity to sure stable operation and no displacement while using .
4.Mini size, wide circle rotation.
5.External battery pack connected using for temporary inspection outside.
Main machine Technical data
Part.No. | M3 |
Input voltage | DC12V/1A |
Input power[W] | 10W |
Motor | DC12V permanent magnet motor |
Operation | Press for continuous running or short mixing |
Maximum load | 0.6Kg |
Speed | 4000rpm±5% |
Orbit | 4.5mm |
Oscillation mode | Circumferential |
Dimension： | 95×95×80mm |
Weight | 0.9kg |
Noise by Max.Speed | ≤40dB(A) |
Allowable ambient temperature/relative humidity | +5-40℃/80% |
Protection class | IP20 |
Interference suppression standard | EN 61010-1，EN 61010-2-020，EN 61326-1，EN 61010-3-2/A2 |
Order information
Cat.No. | Part.No. | Specification |
M.01.029 | M3 | Main machine |
