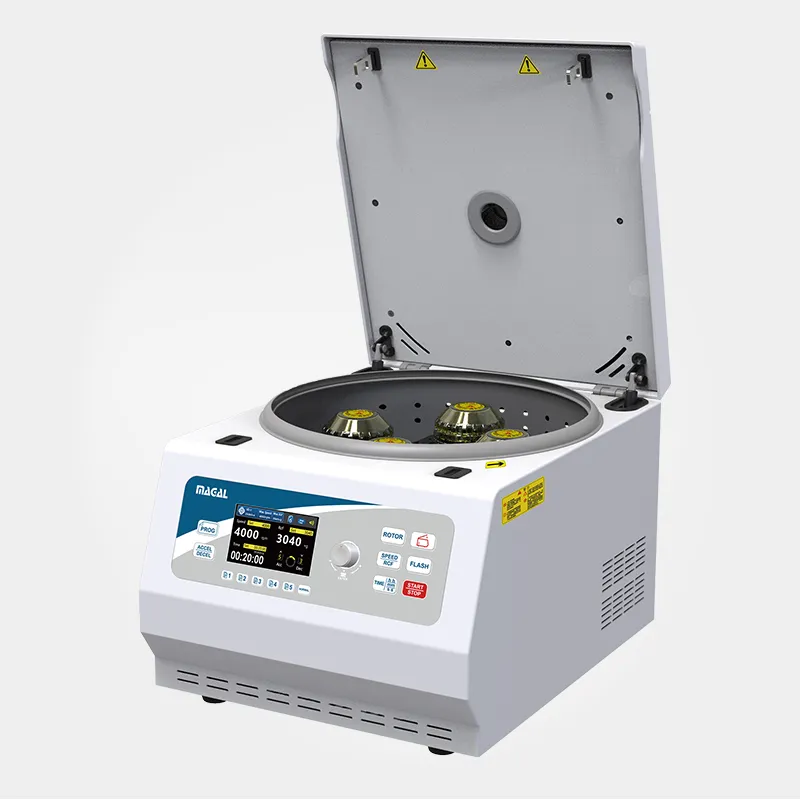

Low-speed centrifugeM500D
Product Introduction
M500D low-speed centrifuge is commonly used for bacteria and infectious virus separation, nucleic acid separation, gradient density centrifugation, blood separation, and clinical test sample processing.
Advantage
1.Smaller footprint, save space in the laboratory.
2.Wide option of rotors and adapters for all commonly used centrifuge tubes，vacuum blood tube.

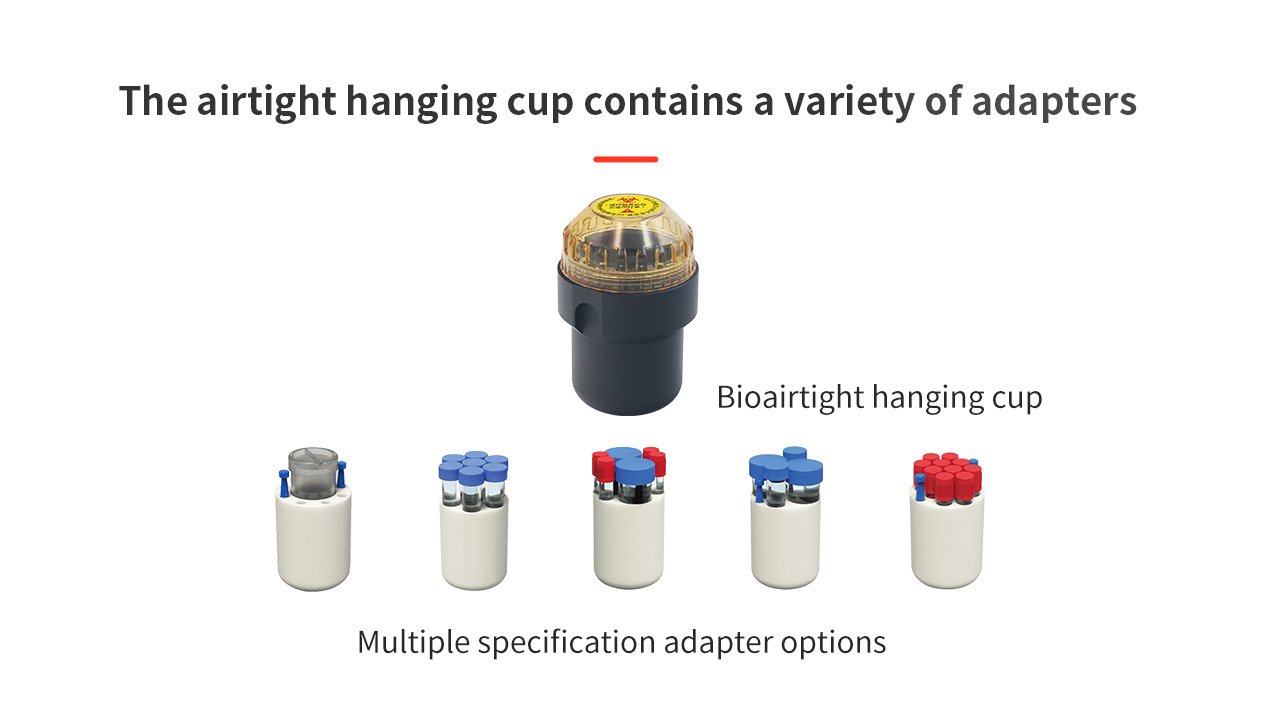

3.Air tightness rotor for dangerous sample centrifugual. especially for biological samples that easily form aerosols such as viruses, blood samples, pathogenic bacteria, etc.
4.Automatic rotor recognition and unbalance detection to sure centrifugal safety.
5.Separate Flask button for instantaneous centrifugal, Press to working.
6.Electric suction double lid lock design,Quickly lid closed with one touch,quiet and safety.
7.Double air rod support makes centrifuge lid opening and closing smoother,more lower opening height.
8.Ten built-in storage programs/5 panel shortcut program, more convenient.
9.PTFE cover Stainless steel centrifuge cavity which can resist corrosive samples centrifugal.
10.The seal ring of lid cover is formed by an imported rubber integrated mold.
11.Five inch IPS full view 16 million chroma true color LCD display. Brightness adjustable to mee thealth requirements.
12.External USB2.0 interface is convenient for system upgrade and experimental data download.
13.Built-in start timing and stable timing function which can effectively calculate the centrifugal efficiency.
14.A variety of downtime music ringtones and duration of music and prompt tone can be adjusted.Make the experiment more comfortable.
15.The display interface supports Chinese and English menu switching.
Main Machine Technical data
Part.No. | M500D |
Input voltage | AC220V/50～60Hz/AC120V |
Input power[W] | 650W |
Max. Capacity[ml] | 1000(250ml×4) |
Speed Range[r/min.] | 200~6000rpm/步增10rpm |
Speed Accuracy | ±20rpm |
Max.RCF [×g] | 5150×g/step increase10×g |
Motor | Maintenance-free brushless inverter motor |
Timing Control | 1-99hrs/1-59min/1-59sec；accuracy±1sec |
Drive control system | Infineon vector sine wave drive control system |
Operation method | Physical button |
Digital Display | 5 inch IPS full view 16 million chroma true color LCD display/Resolution 800×480dpi |
Store program | 10 built-in storage programs/5 panel shortcut program/equipped with NORAML button |
Lid lock method | Mechanical pressing lock,electronically controlled open |
Max.acceleration time[sec]/Speed up gear | 30s/9gears |
Max.Deceleration time[sec]/Speed down gear | 25s/10gears，0gears free stop |
Dimensions:D×W×H | 418×516×338 |
Weight without rotor [Kg] | 37 |
Noise level at max. speed(apprex) | ≤65dB(A) |
Protection class | IP20 |
Allowable ambient temperature/relative humidity | +5~40℃/80% |
Interference suppression standard | EN 61010-1，EN 61010-2-020，EN 61326-1，EN 61010-3-2/A2 |
Rotor Technical data

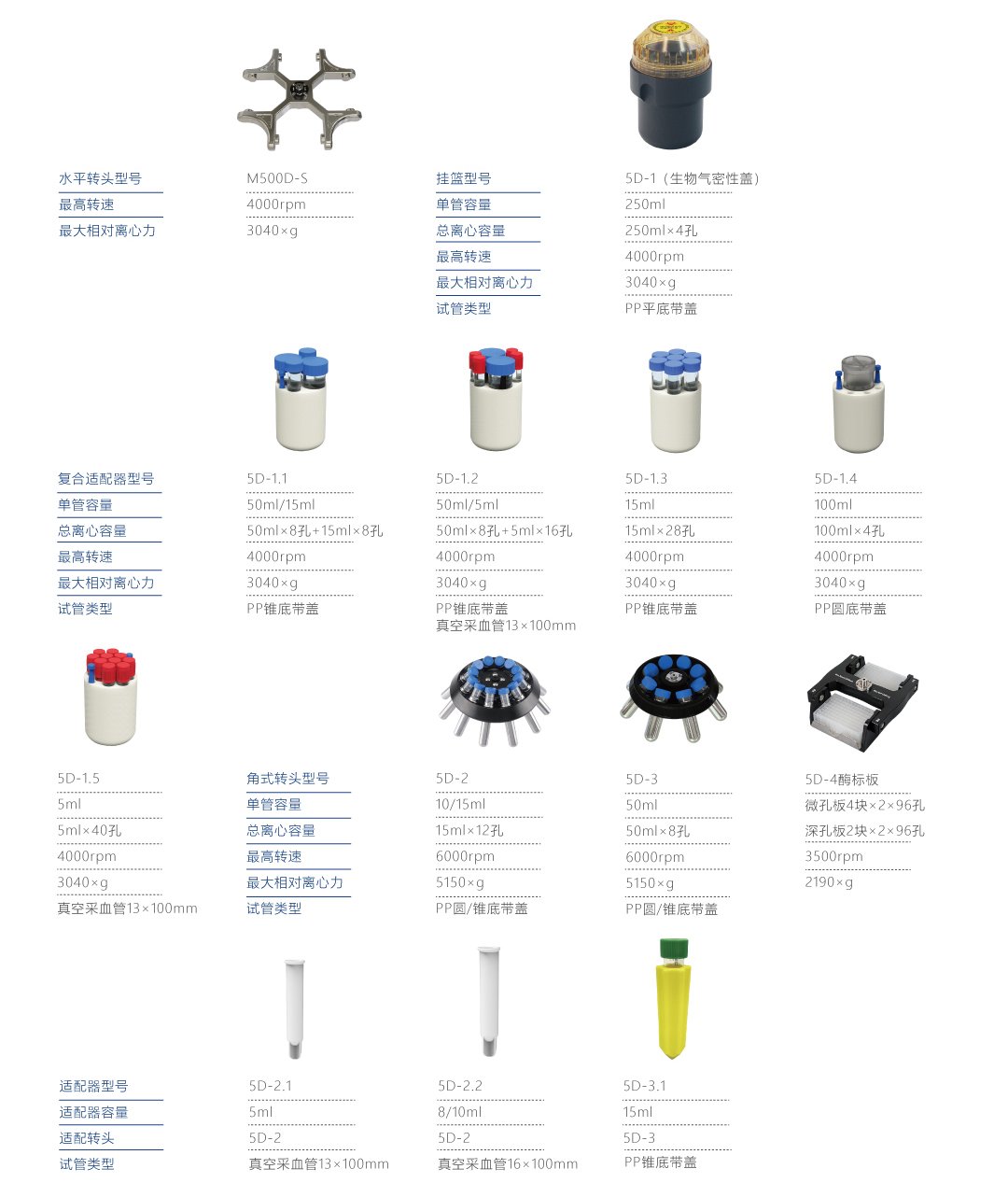

Product model | Capacity ML × Number of tubes | Maximum speed r/min. | Maximum relative centrifugal force × gg | Test tube type and size |
5D-1 | 250ml×4 | 4000 | 3040 | PP flat bottom with cover |
5D-1.1 | 50ml×8+15ml×8 | 4000 | 3040 | PP cone bottom with cover |
5D-1.2 | 50ml×8+5ml×16 | 4000 | 3040 | PP cone bottom with cover |
5D-1.3 | 15ml×28 | 4000 | 3040 | PP cone bottom with cover |
5D-1.4 | 100ml×4 | 4000 | 3040 | PP round bottom with cover |
5D-1.5 | 5ml×40 | 4000 | 3040 | PET vacuum blood collection |
5D-2 | 15ml×12 | 6000 | 5150 | PP round/tapered bottom with cover |
5D-3 | 50ml×8 | 6000 | 5150 | PP round/tapered bottom with cover |
5D-4 | 4 microporous plates × two × ninety-six
2 deep-hole plates × two × ninety-six | 3500 | 2190 | Economic version |
Order information
Product article number | Product model | Configuration information | |
M.01.018 | M500D | Master | |
L.05.003 | M500D-S | Horizontal swivel fitting 5D-1 hanging basket | Standard configuration |
L.03.018 | 5D-11 | Hanging basket 250ml × 4 holes | Optional |
L.03.020 | 5D-1.1 | Composite adapter 50ml × 8 holes+15ml × 8 holes | Optional |
L.03.021 | 5D-1.2 | Composite adapter 50ml × 8 holes+5ml × 16 holes | Optional |
L.03.022 | 5D-1.3 | Adapter 15ml × 28 holes | Optional |
L.03.023 | 5D-1.4 | Adapter 100ml × 4 holes | Optional |
L.03.024 | 5D-1.5 | Adapter 5ml × 40 holes | Optional |
L.02.001 | 5D-2 | Angle swivel 15ml × 12 holes | Optional |
L.02.002 | 5D-3 | Angle swivel 50ml × 8 holes | Optional |
L.06.017 | 5D-2.1 | Adapter 5ml for 5D-2 | Optional |
L.06.018 | 5D-2.2 | Adapter 8/10ml for 5D-2 | Optional |
L.06.019 | 5D-3.1 | Adapter 15ml for 5D-3 | Optional |
