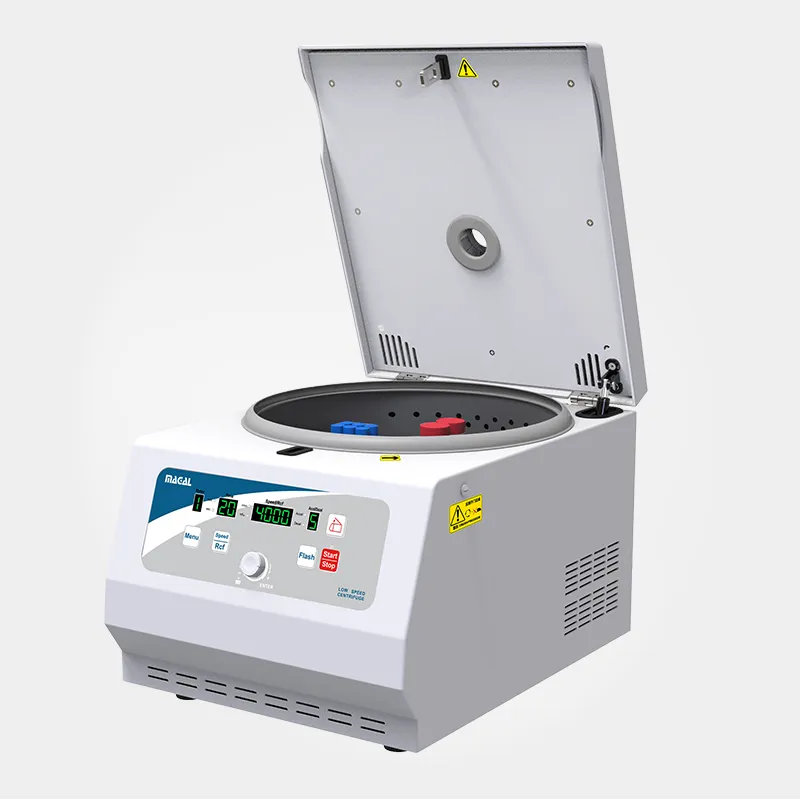

Lower speed centrifugeM400D
Product Introduction
The M400D Air –Cooled lower speed centrifuge which the functions are powerful , highly commonality and handy for operation. The centrifuge use the latest controller system which will be reliable quality and superior performance. It widely used in medical laboratory ,industrial laboratory , biochemical and molecular biology researching .Also more pronounced in the genetic ,protein nucleic acid and PCR field .
Advantage

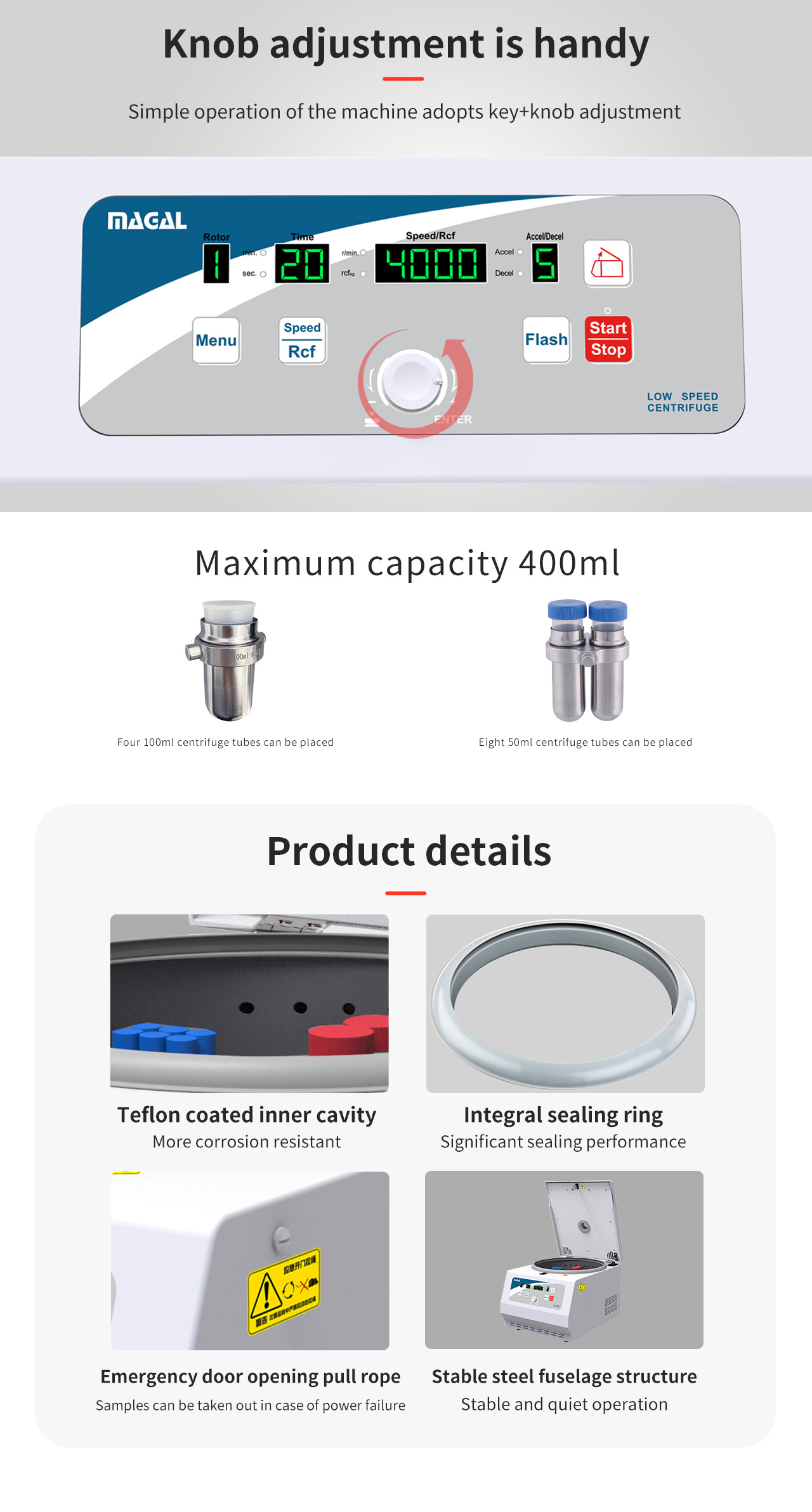

1.PTFE cover Stainless steel cavity and solid construction, suitable for continuous use, electronic lock, easy to open lid, automatic locking lid to ensure safety.
2.Large LED display showing which can be clear the operating parameter, separated button for rpm/rcf transformation . easy to adjust and check relative centrifugal force in real time.
3.Real-time display of speed up and down. It is more convenient for fast adjustment which fully meets various centrifugal needs.
4.Single knob controlled can be fast changed parameter.
5.The isolation layer outside the centrifugal cavity can fully absorb noise and reduce vibration.
6.Equipped with advanced and reliable Infineon vector sine wave drive control system. Accurate controlled the speed ,time and RCF.
7.Frequency conversion brushless motor without maintenance , control speed 100-6000rpm.±15rpm.
8.Centrifuge speed and RCF step increase 10rpm/10×g, timing control 1-99 minutes or 1-59sec. Accuracy±1 seconds. Instantaneous centrifugal, press the（flash）button which can be centrifuged faster. Automatically record the last experimental value.
9.The master device and the rotor which use the high strength material to resist various chemical corrosion. It has nice sealing property and can be with high temperature sterilization .
10.The centrifuge have lid protection.excessive speed and imbalance detection system which can be real-time monitoring.ensure the centrifuge safe operation. when appear the imbalance，sound signal reminder and stop operation at the same time,LED display show the error code.
11.Forced ventilation cooling and excellent air heat exchange technology can significantly and effectively reduce the increase in the temperature of the rotor.Automatic opened the lid when finish the operating ,The samples will not overheating and discharge the sample more convenient.
Main machine Technical data
Part.No. | M400D |
Input voltage | AC220V/50～60Hz/AC120V |
Input power[W] | 350W |
Max. Capacity[ml] | 400(50ml×8/100ml×4) |
Speed Range[r/min.] | 100~6000/step increase10rpm |
Speed Accuracy | ±20rpm |
Max.RCF[×g] | 5150/step increase 10×g |
Motor | Maintenance-free brushless inverter motor |
Timing Control | 1-99min/1-59sec；accuracy±1sec |
Drive control system | Infineon vector sine wave drive control system |
Operation method | Physical button |
Display | LED |
Lid lock method | Mechanical pressing lock,electronically controlled open |
Max.acceleration time[sec]/Speed up gear | 30s/9gears |
Max.Deceleration time[sec]/Speed down gear | 25s/10gears，0 gears for stop free |
Dimensions:D×W×H | 390×500×320 |
Weight without rotor [Kg] | 30 |
Noise level at max. speed(apprex) | ≤65dB(A) |
Protection class | IP20 |
Allowable ambient temperature/relative humidity | +5~40℃/80% |
Interference suppression standard | EN 61010-1，EN 61010-2-020，EN 61326-1，EN 61010-3-2/A2 |

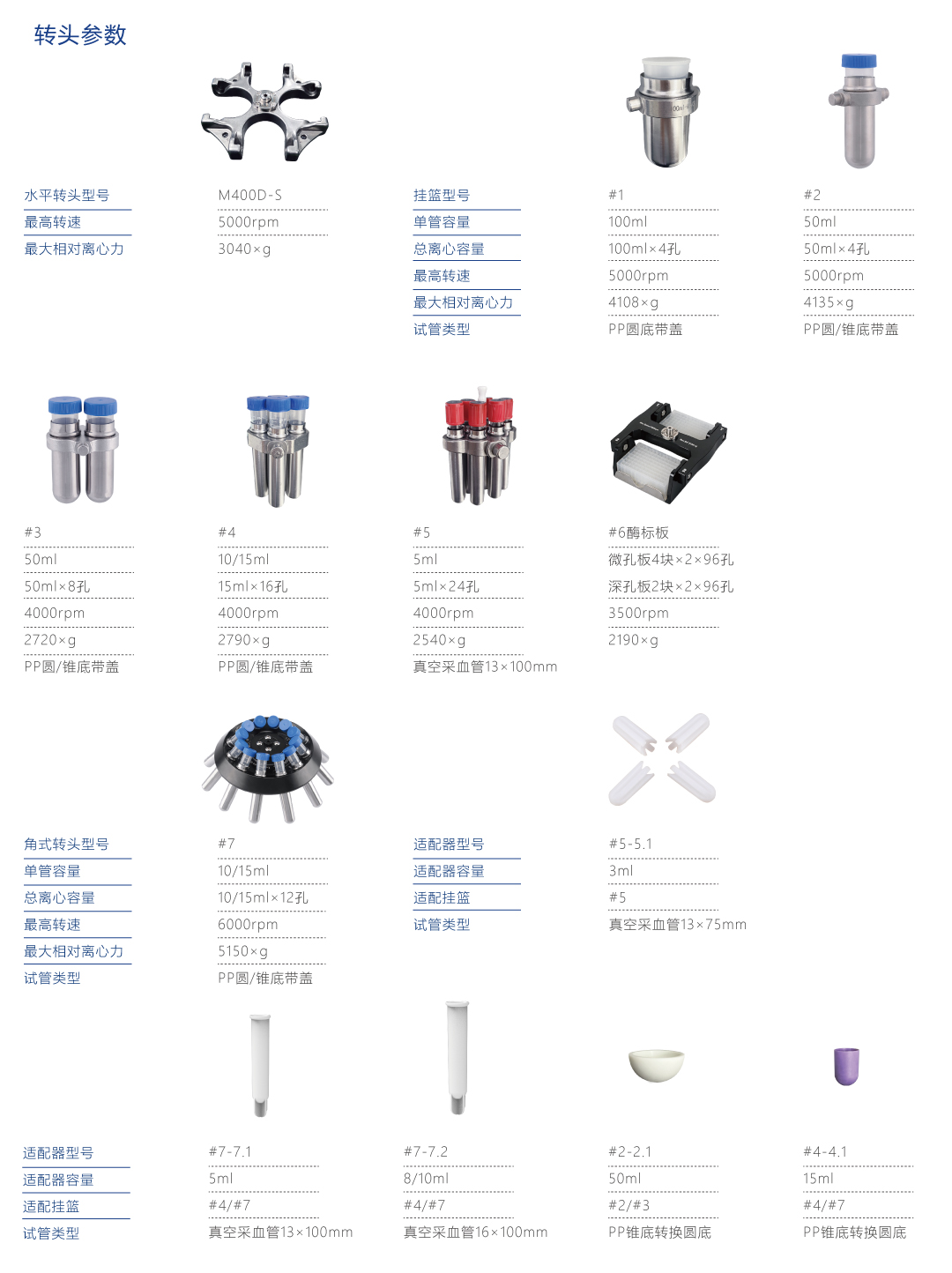

Rotor Technical data
Part Name | capacity ML×No. | Max. Speed r/min. | Max. RFC ×g | Tube specification |
#1 | 100ml×4 | 5000 | 4108 | PP round bottom with cap |
#2 | 50ml×4 | 5000 | 4135 | PP round/conical bottom with cap |
#3 | 50ml×8 | 4000 | 2720 | PP round/conical bottom with cap |
#4 | 15ml×16 | 4000 | 2557 | PP round/conical bottom with cap |
#5 | 5ml×24 | 4000 | 2790 | blood collection tube |
#6 | Microplate 4pcs×2 sides×96wells Deep well plate 2pcs×2sides×96wells | 3500 | 2190 | |
#7 | 15ml×12 | 6000 | 5150 | PP round/conical bottom with cap |
Order Information
Part.No. | Part Name | Specification | |
M.01.016 | M400D | Main Machine | |
L.05.001 | M400D-S | Swing rotor/for M400D-S-1~M400D-S-6 basket | |
L.03.023 | #1 | basket/100ml×4pcs | Standard |
L.03.025 | #2 | basket/50ml×4pcs | Standard |
L.03.026 | #3 | basket/50ml×8pcs | Standard |
L.03.038 | #4 | basket/10/15ml×16pcs | Standard |
L.03.039 | #5 | basket/5ml×24pcs | Standard |
L.06.007 | #5-5.1 | Adapter 3ml × 24 | Standard configuration # 5l |
L.03.017 | #6 Enzyme label plate | 4 microporous plates × two × 2 96-hole/deep-hole plates × two × 96 holes | optioanl |
L.02.001 | #7 | Microplate 4pcs×2×96/Deep well plate2pcs×2×96 | optioanl |
L.06.017 | #7-7.1 | Adapter 5ml × 12 pieces/suitable for # 4/# 7 | optioanl |
L.06.018 | #7-7.2 | Adapter 8/10ml × 12 pieces/suitable for # 4/# 7 | optioanl |
L.06.019 | #2-2.1 | Conversion adapter 50ml round bottom to conical bottom | Optioanl#2#3 |
L.06.020 | #4-4.1 | Conversion adapter 15ml round bottom to tapered bottom | Optioanl#4#7 |
